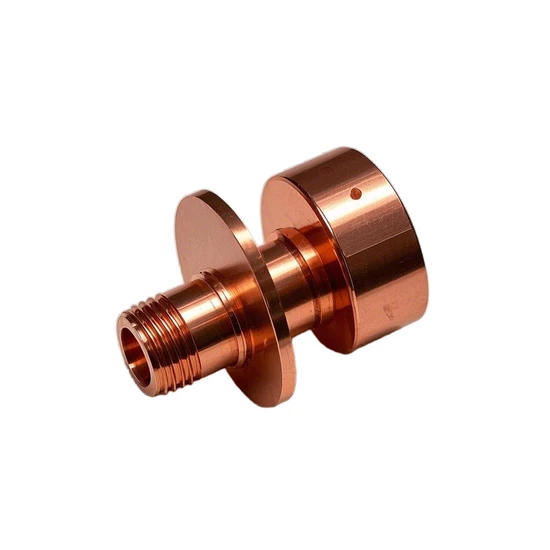

C110 Copper CNC Parts
Quick Specifications
Material
C110 Copper
Process
CNC Machining
Tolerance
±0.005mm
Lead Time
3-5 Days
MOQ
1 Piece
Conductivity
100% IACS
Material
C110 Copper
Process
CNC Machining
Tolerance
±0.005mm
Lead Time
3-5 Days
MOQ
1 Piece
Conductivity
100% IACS
C110 copper CNC parts are precision-engineered components manufactured from C110 copper, also known as Electrolytic Tough Pitch (ETP) copper. This high-purity copper alloy (99.9% minimum copper content) offers exceptional electrical and thermal conductivity, making it the industry standard for electrical and thermal management applications. With a conductivity rating of 100% IACS (International Annealed Copper Standard), C110 copper provides optimal performance for electrical current carrying and heat dissipation requirements.
Our advanced CNC machining capabilities enable us to produce custom C110 copper parts with exceptional precision and tight tolerances. The material's excellent formability, combined with good strength and corrosion resistance, makes it ideal for a wide range of applications in electrical, electronics, thermal management, and industrial sectors. Our experienced engineering team works closely with you from design to delivery, ensuring your parts are manufactured to exact specifications while maintaining the material's superior conductivity properties.
We offer comprehensive surface finishing options for your C110 copper parts, including polishing for enhanced conductivity and aesthetic appeal, tin plating for improved solderability and corrosion protection, and silver plating for superior electrical contact performance. With fast delivery from our USA warehouse and no minimum order quantity, we're ready to meet your production needs, whether you require a single prototype or high-volume production of precision copper components.
| Material | C110 Copper (Electrolytic Tough Pitch) |
| Process | CNC Milling, CNC Turning, 5-Axis Machining |
| Tolerance | ±0.005mm (±0.0002") standard, tighter on request |
| Electrical Conductivity | 100% IACS (International Annealed Copper Standard) |
| Thermal Conductivity | 391 W/m·K at 20°C |
| Surface Finish | Polishing, Tin Plating, Silver Plating, Electroless Nickel |
| Size Range | Up to 300mm x 300mm x 300mm |
| Lead Time | 3-5 days for prototypes, 7-14 days for production |
| Certifications | ISO 9001:2015, IATF 16949:2016, ISO 14001:2015 |
Electrical connectors, bus bars, terminals, and grounding components requiring maximum electrical conductivity
Heat sinks, thermal management components, and electronic enclosures requiring superior thermal conductivity
Heat exchangers, cooling plates, and thermal interface components for efficient heat dissipation
Battery terminals, electrical connectors, and motor components requiring high conductivity and reliability
Motor windings, transformer components, and industrial electrical equipment requiring superior conductivity
Power distribution components, switchgear parts, and high-current connectors requiring minimal electrical resistance
CNC Machines
Precision Tolerance
Days Delivery
Years Experience
ISO 9001:2015
IATF 16949:2016
ISO 14001:2015
SA 8000:2014
C110 copper has an electrical conductivity rating of 100% IACS (International Annealed Copper Standard), making it one of the most conductive materials available. This makes it ideal for electrical applications requiring minimal electrical resistance.
We have no minimum order quantity. Whether you need a single prototype or thousands of production parts, we can accommodate your requirements with the same level of precision and quality.
Prototype orders typically ship within 3-5 business days. Production orders usually take 7-14 days depending on quantity and complexity. Expedited options are available for urgent requirements.
C110 copper offers the highest electrical conductivity among commercially available copper alloys at 100% IACS. Its excellent formability, good strength, and proven performance make it the industry standard for electrical and thermal management applications.
We offer polishing for enhanced conductivity and aesthetic appeal, tin plating for improved solderability and corrosion protection, silver plating for superior electrical contact performance, and electroless nickel plating for uniform coating on complex geometries.
Free machining brass for precision mechanical components with 100% machinability rating
Learn More →

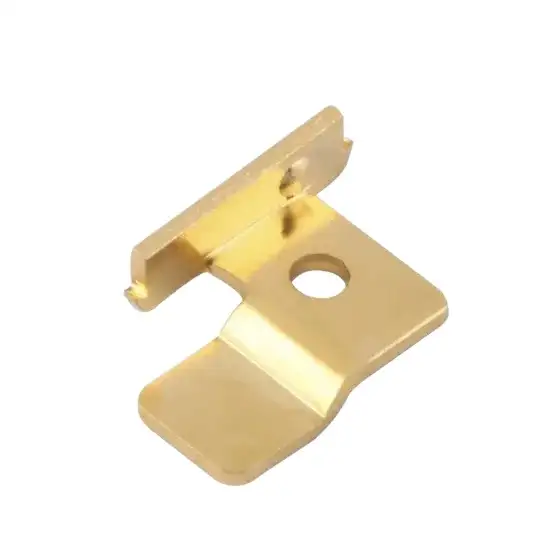

Marine-grade brass with excellent seawater corrosion resistance and dezincification resistance
